The JUER Electric® Waterproof LED Rocker Switch which has a free sample from China suppliers offer a high switching current in a compact design.

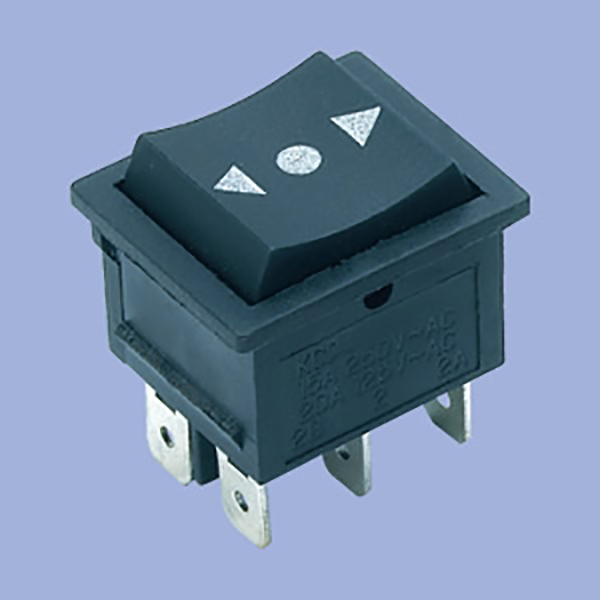

The JUER Electric® Waterproof LED Rocker Switch is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Waterproof LED Rocker Switch have a related product named KCD1-2-111,it is 2P OFF- momentary ON.
| Item | KCD1-2-101 6A 250VAC ON OFF 2 Position 2PIN Mini CQC Rocker Switch |
| Switch Function | ON OFF 2pin mini cqc rocker switch |
| Rating | 10A 125VAC; 6A 250VAC |
| Contact Resistance | < 35MΩ |
| Insulation Resistance | 500VDC 1000MΩ Minute |
| Dielectric Strength | 1500VAC, 1 Minute |
| Operating Temperature | -25°C~+85°C |
| Electrical life | 10000 CYCLES |
