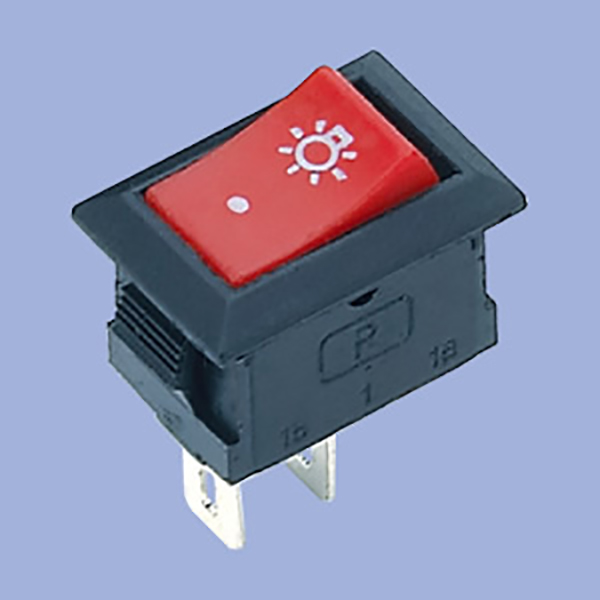

Different types of the JUER Electric® on off Mini Electrical LED Boat Rocker Switch which is cheap and provides a free sample are widely applied to home electrical appliances, car accessories and other electric equipments.
1.CE CQC TUV approved.;
2.6A 250VAC;10A 125VAC;16A 20A 25A
3.function: on-off,on-on, On-off-on or on/off with light .2 or 3 PINS;
4.Material:Base plastic---Nylon 66;Button plastic---PC or Nylon 66;
Copper parts such as terminal----Copper H62;
Terminal surface treatment----- tin plating;
Contact----silver on copper ;
Spring----Tungsten steel;
Waterproof cap----PVC (It has waterproof cap if required. )
5. Material:Silver Contact,PC,PA66;
6.The appliance switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.
| RATING: | 15A 250VAC;20A 125VAC;30A 12VDC |
| MECHANICAL LIFE: | >50000 CYCLES |
| ELECTRICAL LIFE | >10000 CYCLES |
| CONTACT RESISTANCE | < 50MΩ |
| INSULATION RESISTANCE | >1000MΩ |
| WITHSTAND VOLTAGE | >1500V/MINUTE |
| AMBIENT TEMPERATURE | -10°C~+85°C |
| STORAGE TEMPERATURE | -25°C~+85°C |
