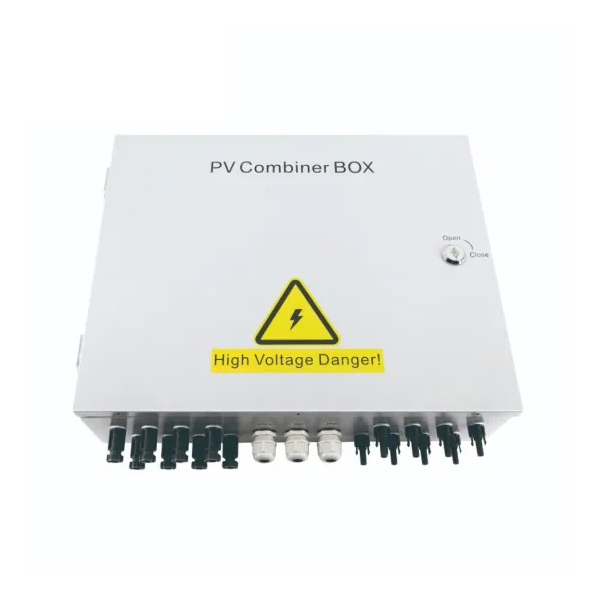

The JUER Electric® Ip65 Solar Panel System Distribution Box which is made by China manufacturers to a junction box, which is an electrical enclosure that securely unites multiple wires and cables through various ports of entry. A solar combiner box combines the output of numerous strings of PV modules for connection to the inverter.
The JUER Electric® Ip65 Solar Panel System Distribution Box synthetic DC input of 24 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types: intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.
Design and configuration strictly accordance with the Technical specification for photovoltaic junction equipment CGC/GF 037:2014.
Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by users requirements.
| Name | ZC-24 |
| System maximum dc voltage | 1000 |
| Maximum input current for each string | 15A |
| Maximum input strings | 24 |
| Maximum output switch current | 400A |
| Number of inverter MPPT | N |
| Number of Output strings | 1 |
| Category of test | ‖ grade protection |
| Nominal discharge current | 20ka |
| Maximum discharge current | 40ka |
| Voltage protection level | 3.8kv |
| Maximum continuous operating voltage Uc | 1050A |
| Poles | 3P |
| Structure characteristic | Plug-push module |
| Protection grade | IP65 |
| Output switch | DC isolation switch(standard)/DC circuit |
| DC MC4/DC FUSE/DC Surge Protector | Standard |
| Monitoring module/Preventing diode | Optional |
| Installation method | Wall mounting type |
| Operating Temperature | -25ºC--+55ºC |
| Elevation of temperature | 2km |
| Permissible relative humidity | 0-95%, no condensation |
