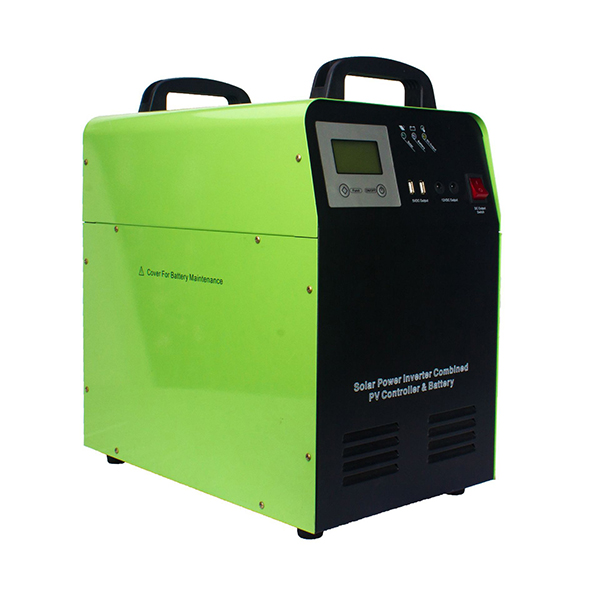

The following is the introduction of high quality JUER Electric® 500w Portable Photovoltaic Solar System, hoping to help you better understand 500w Portable Photovoltaic Solar System. Welcome new and old customers to continue to cooperate with us to create a better future!
* Excellent performance because of an MCU intelligent control technology
* A wide range of applicable loads because of pure sine wave AC output
* convenient and practical 5VDC-USB output port and 12VDC output port
* Solar array and battery common-anode system input
* Charge by the electricity grid for flexible configuration
* Overcharge protection and over-discharge protection for a longer battery life
* LCD and LEDs for visualization of operation status of the equipment
* Overall automatic protection and alarms including AC output overload protection, short circuit
| Model: ZC | 0.3kw/12v | 0.5kw/12v | 0.5kw/24v | 1kw/24v | 1.5kw/24v | |
| Inverter | Battery voltage | 12v | 24v | |||
| In-built battery specification | 1*55AH/12V | 2*565AH/12V | 4*55AH/12V | |||
| Rated power | 300W | 500W | 500W | 1000W | 1500W | |
| Output voltage | 110/220VAC | |||||
| Output frequency | 50/60HZ | |||||
| Output waveform | sine wave | |||||
| Charge by a mains supply | Rated voltage | 110/220VAC---*("*"mean an optional function) | ||||
| Charge current | 10A(MAX)-*(ditto) | 5A(MAX)-*(ditto) | ||||
| solar input | Maximum power | ≤25V | ≤50V | |||
| Voltage of overcharge protection | 10-25V | 20-50V | ||||
| Rated charge current | 30A | |||||
| Maximum power | 360Wp | 720Wp | ||||
| Voltage of overcharge protection | 14.2V | 28.4V | ||||
| Voltage of overcharge recovery | 14.0V | 28.0V | ||||
| Voltage of floating charge | 13.7V | 27.4V | ||||
| DC output | Voltage of high-voltage protection | 16V | 32V | |||
| Voltage of high voltage recovery | 15.2V | 30.4V | ||||
| Voltage of low voltage recovery | 12.6V | 25 | ||||
| Voltage of lower voltage protection | 11V | 22V | ||||
| 5VDC USB output port | 2one/MAX2A | |||||
| 12VDC output port | 2 one ports + backboard 12V terminal block (MAX8A) | |||||
| Starting temperature of the exhaust fan | >45℃ | |||||
| Ambient temperature for operation | 0-40℃ | |||||
| Ambient temperature for storage | -25--+55℃ | |||||
| Operation/storage condition | 0-90% (no condensation) | |||||
